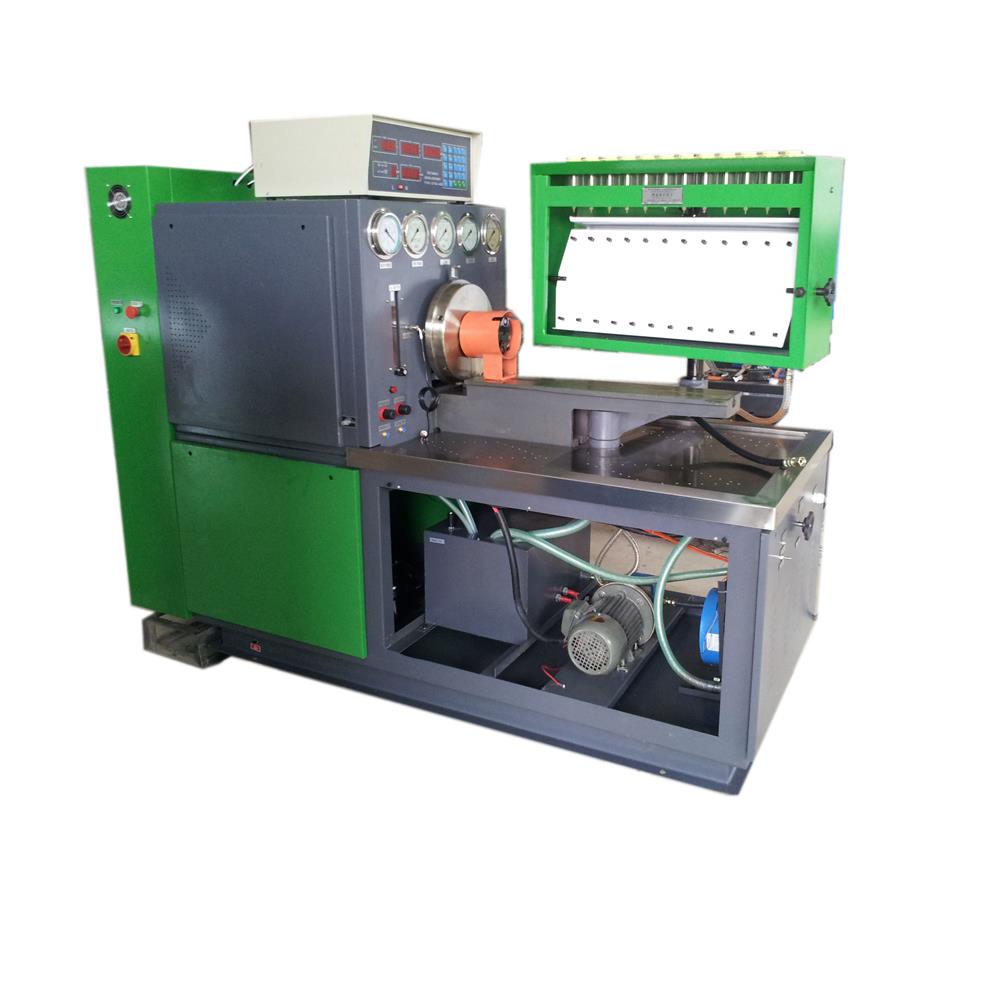

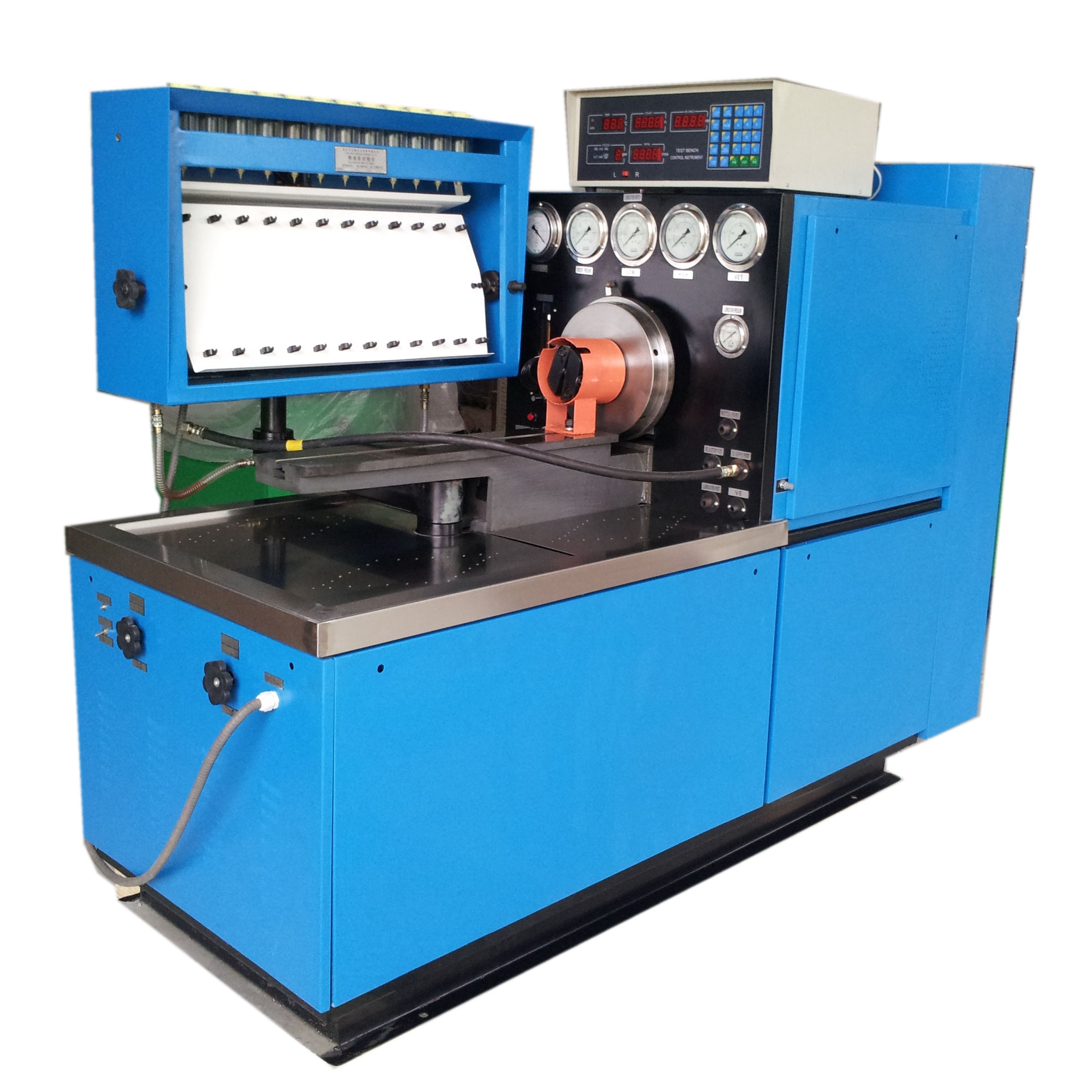

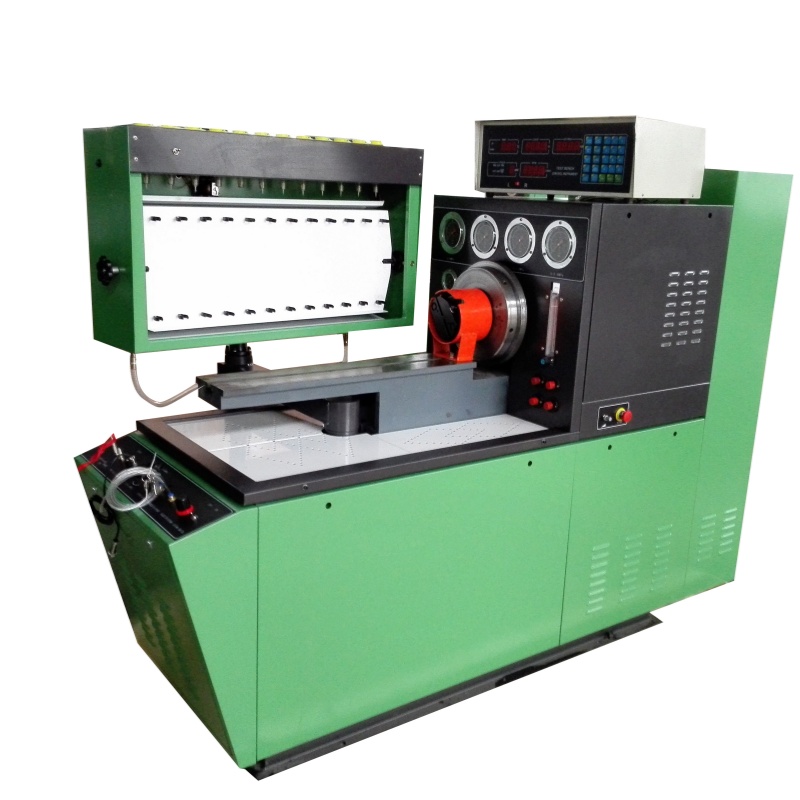

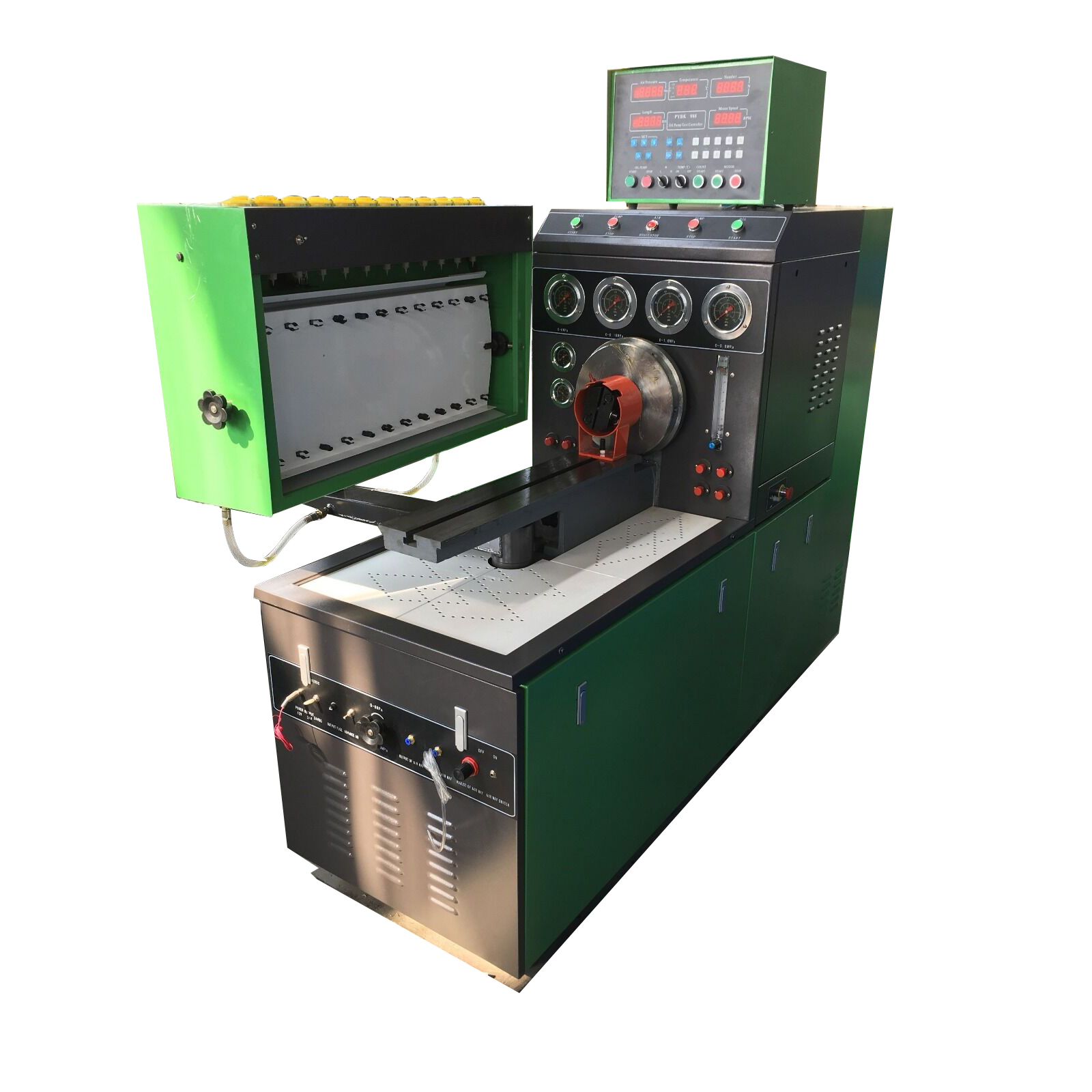

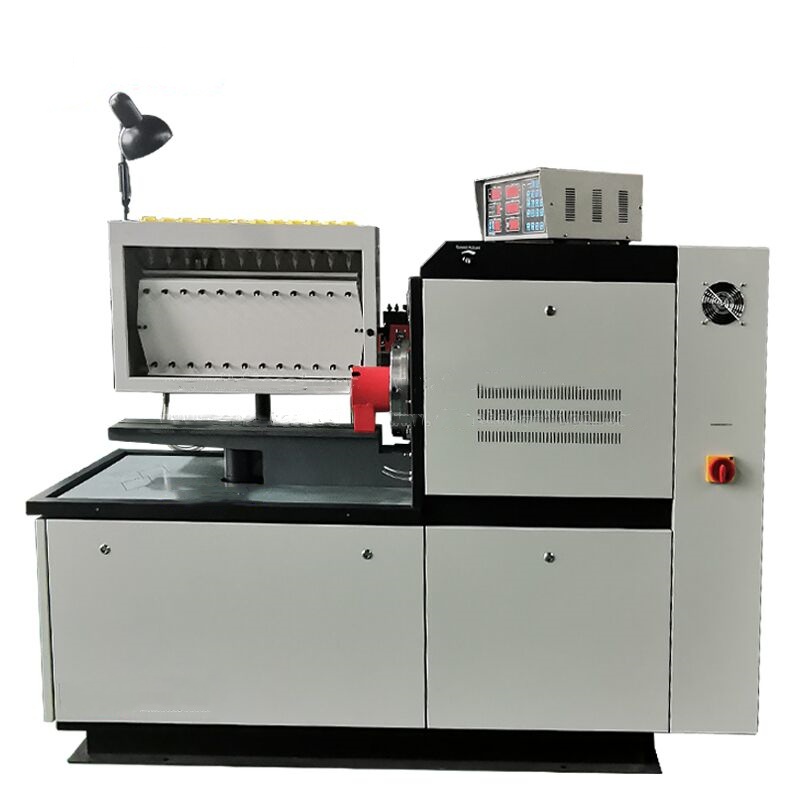

12PSB-4 12 cylinder diesel fuel injection pump test bench(Digital type)

>>>FUNCTIONS

1. Measurement of each cylinder’s delivery at various rotation speeds;
2. Checking of each cylinder’s injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors’  positive pressure performance;
6. Checking of the pneumatic speed governor’s vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pump’s body internal pressure;
9. Checking of sealing of fuel injection pump body;
10. Measurement of the advance angle.

>>>CHARACTERISTICS

1. Changing frequency changing rotation speed,  low fall of rotation speed and high output torque;

2.Rotation speed, count, temperature, air pressure and advance angle are displayed in digits mode;

3. Seven kinds of rotation speeds presetting;
4. Built-in air resource;
5. Constant temperature controlled;
6. The functions of over voltage, overload and short circuit protection;
7. Operating position: arbitrary side of the two work sides of the test stand;
8. High measurement precision, ultra low noise.

>>>TECHNICAL PARAMETERS
