CR1016-CRI Hot Selling Vehicle Tools Diagnostic Multi Function Common Rail Test Bench

Category:

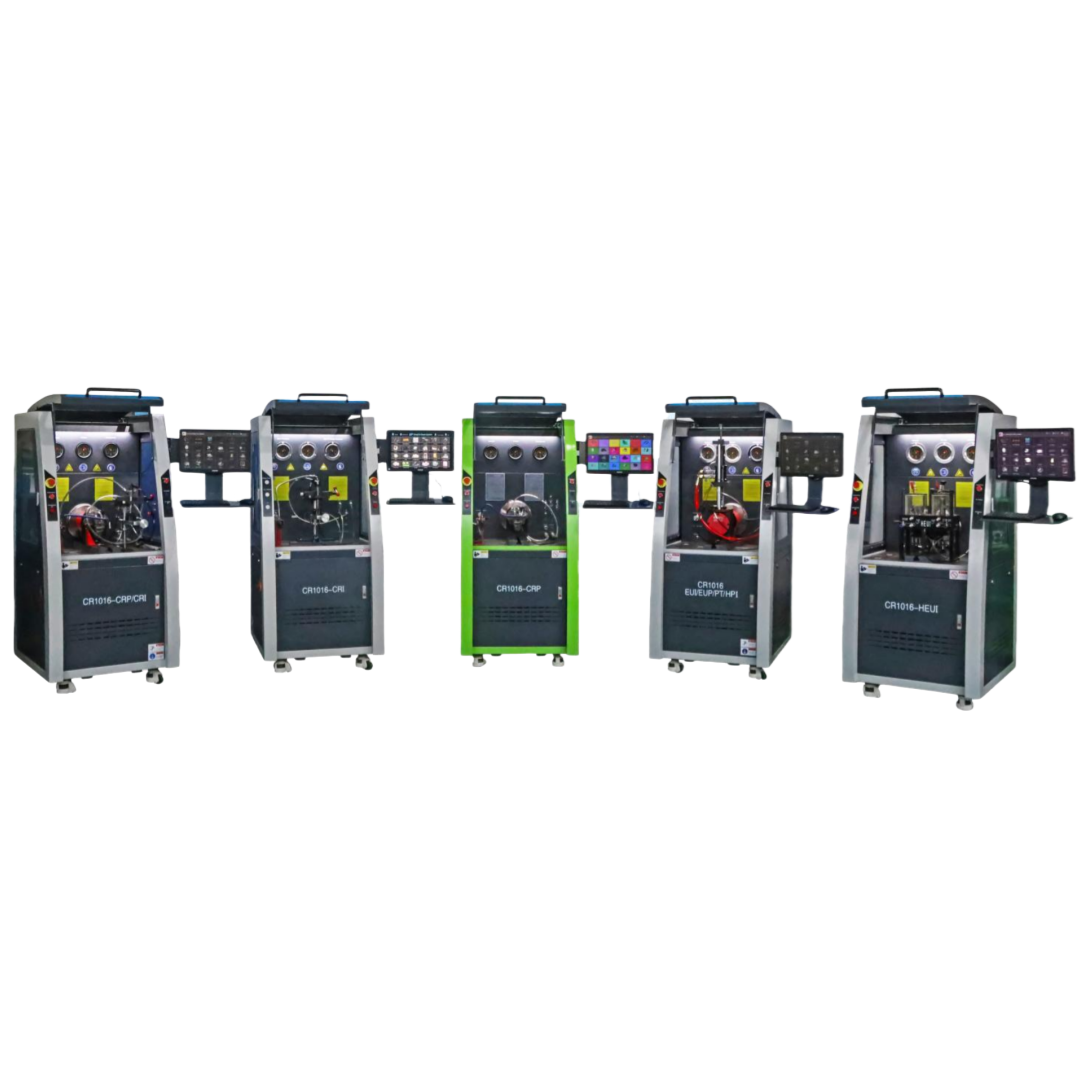

CR1016-CRI Hot Selling Vehicle Tools Diagnostic Multi Function Common Rail Test Bench

CR1016 test bench is one advance model for test common rail injector, common rail pump, EUI EUP HPI PT Cummins injector, HEUI C7 C9 C-9 etc injectors alone, it adopt computer system with all data inside and it can updata online.

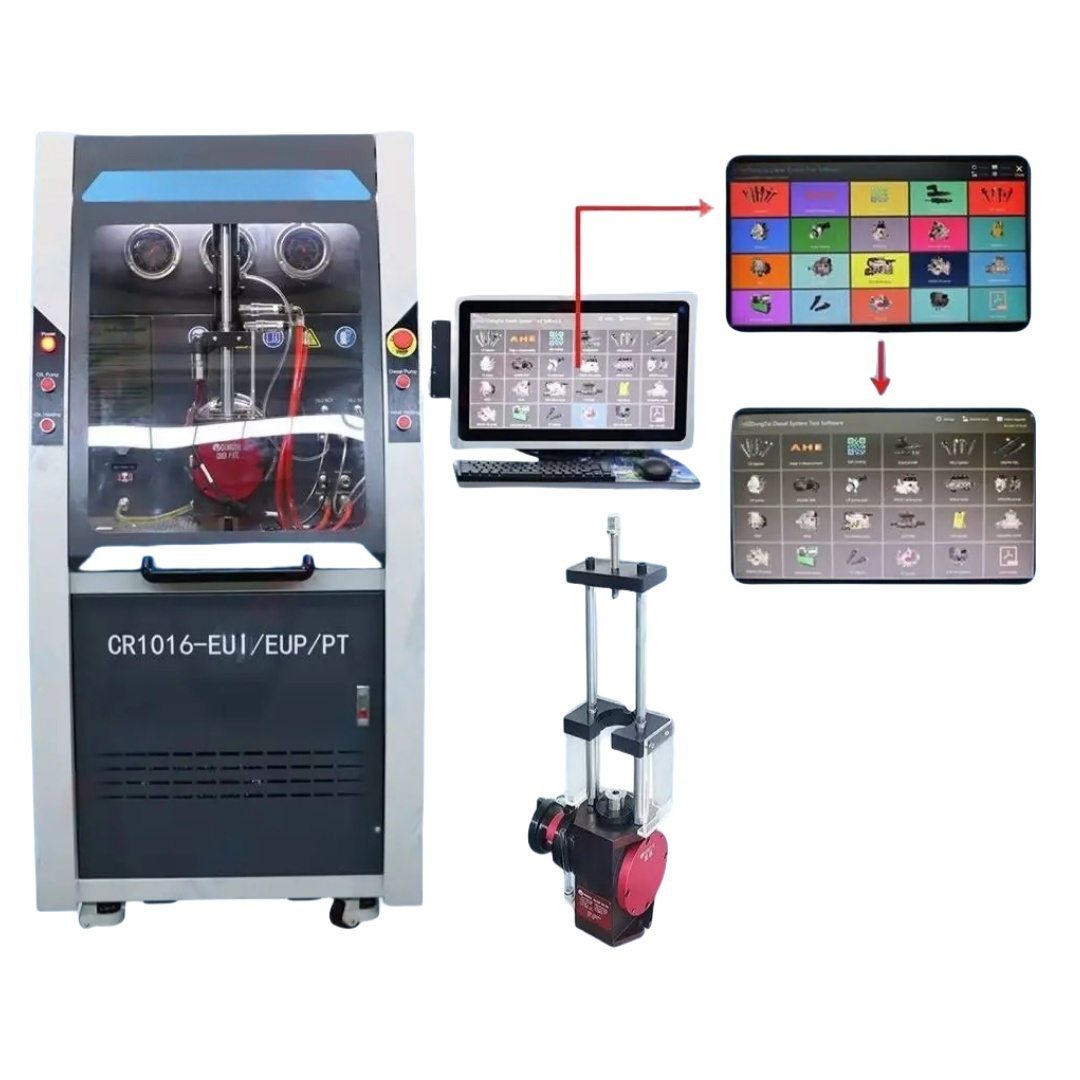

CR1016-EUI/EUP/PT Test Bench

Standard function: Can test unit pump (EUP); Can test unit injector (EUI); Lowest limit alarm of the oil level; Configure multiple precision filters; Testing oil automatic heating &cooling control; Real-time display fuel injection &return volume curve. Optional function: Test HPI, X15, Q60 injector; Test PT CUMMINS Injectors.

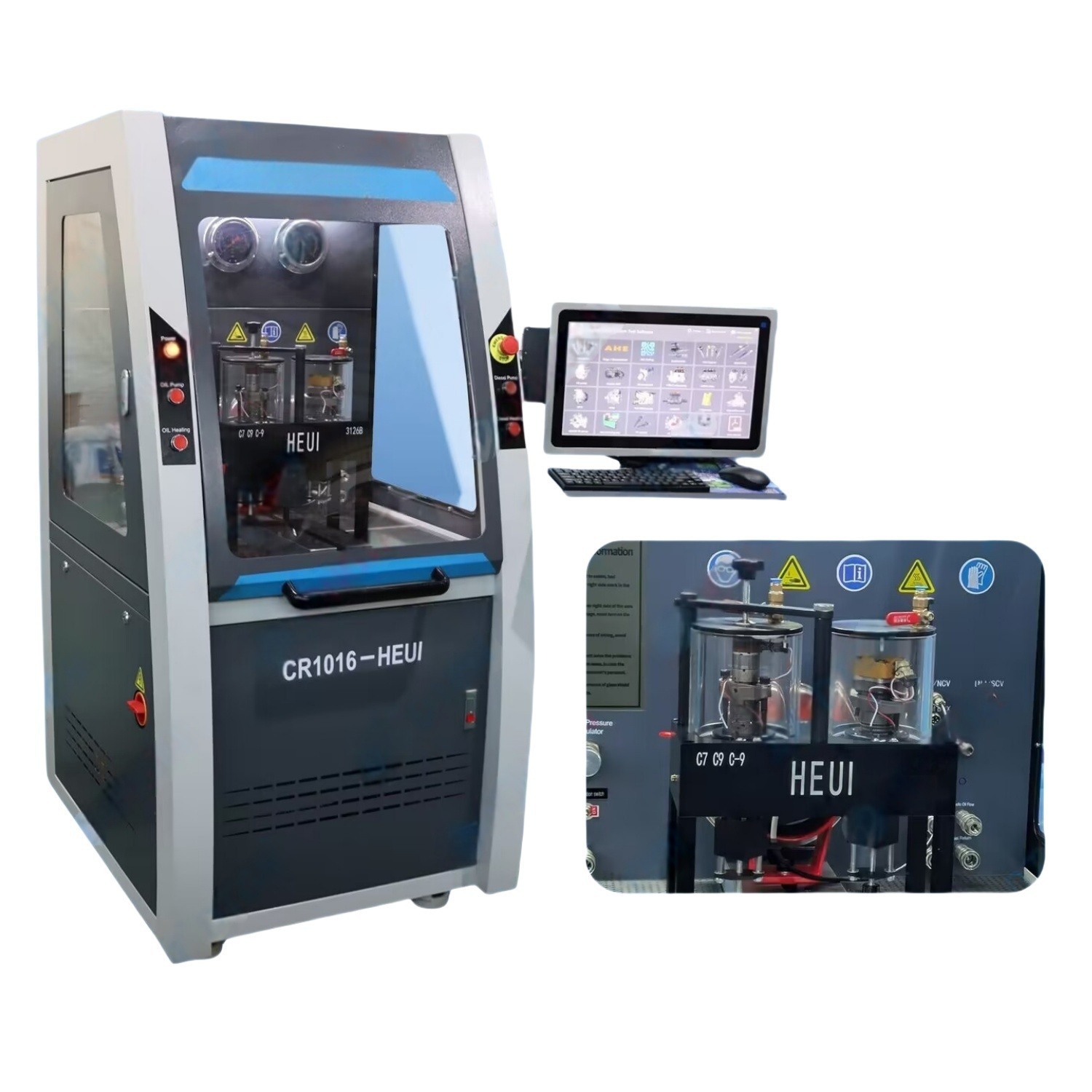

CR1016-HEUI Test Bench

CR1016-HEUI is a test bench capable of testing medium pressure injectors.include testing C7,C9,C-9,3126,3408, 3412, ISUZU,Ford 6.0L, 7.3L injectors. CP3 pump, two diesel oil tank, test result shows on computer.

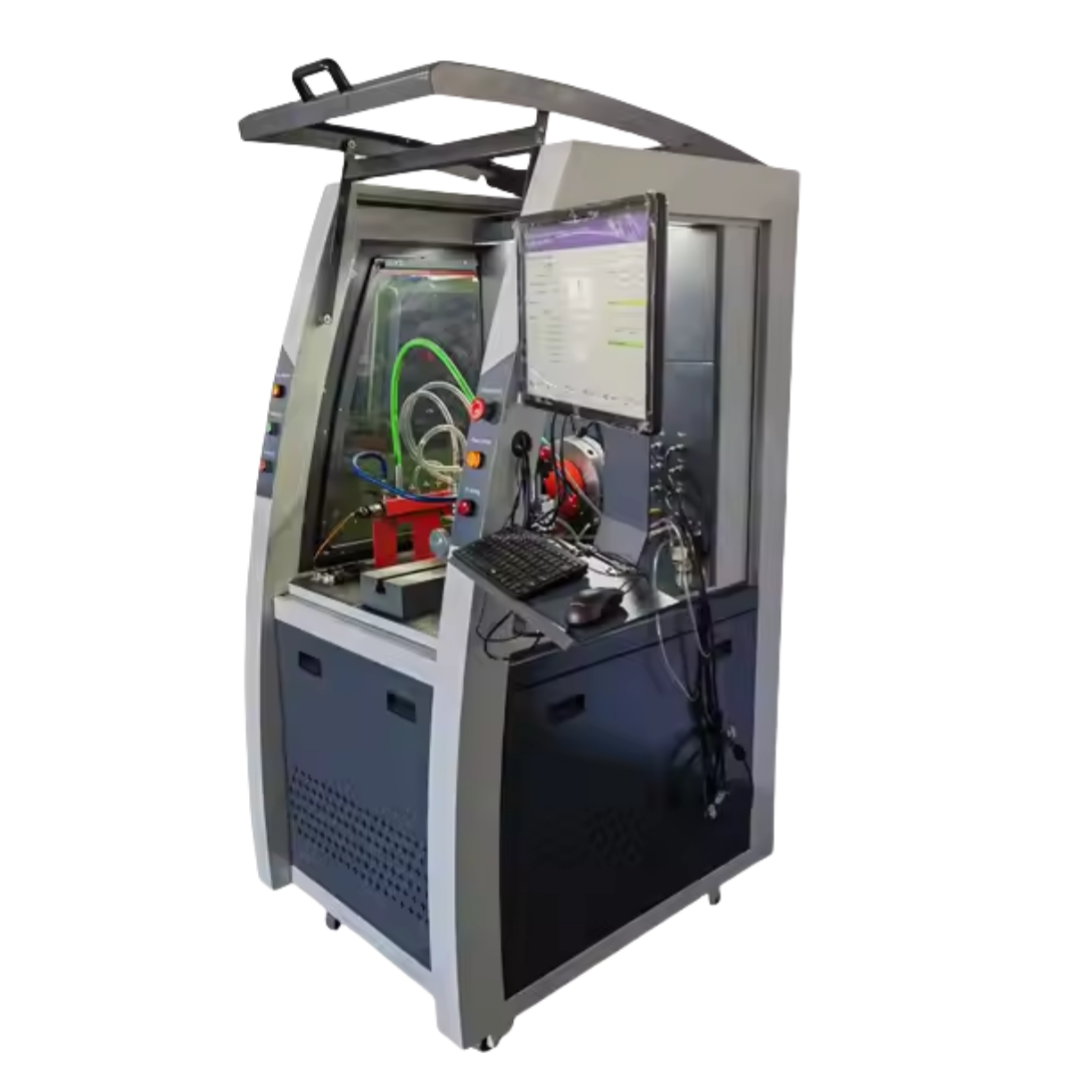

CR1016-CRI Test Bench

  1. High-precision flow measurement, it use imported Flow sensor, high precision, good repeatability; 2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection; 3. It can test BOSCH, DENSO, DELPHI, SIEMENS, CUMMINS, CAT etc. injector; 4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact; 5. Advanced control, a key selection, the whole process of detection; 6. Massive data; 7.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration;

8.Injector coding function(expert mode optional).

CR1016-CRP Test Bench

  1. Test common rail pump; 2. Test CP1, CP2,CP3 ,HP0,HP3,HP4,HP5,HP6 pump; 3. Test CAT 320D pump; 4. Test common rail pump parts.

CR1016-CRP CRI Test Bench

  1. High-precision flow measurement, it use imported Flow sensor, high precision, good repeatability; 2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection; 3. It can test BOSH, DENSO, DELPHI, SIEMENS, CAT etc injector; 4.Test 320D pump and injector; 5. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact; 6. Advanced control, a key selection, the whole process of detection; 7. Massive data; 8.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration; 9.It with pump Flow sensor, it works with high pressure rail sensor to test common rail pumps; 10.It can test CP1, CP2,CP3 ,HP0,HP3,HP4,HP5,HP6 etc high pressure common rail
