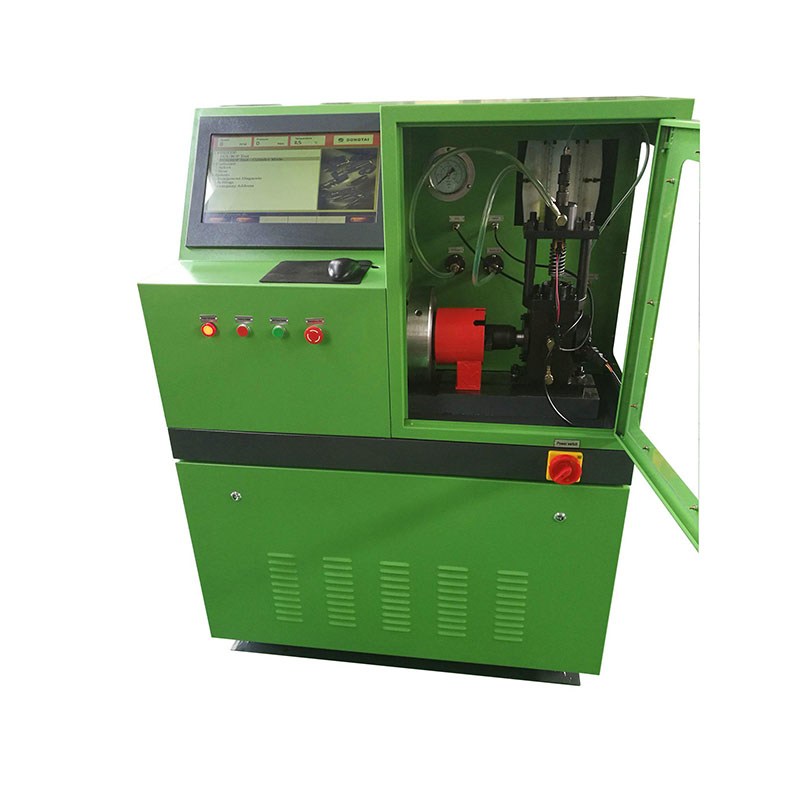

1，Measuring glass
2，Standard injector holder
3，Fuel supply Interface
4，Fuel oil return Interface
5，Oil pressure gauge，0-0.6MPA
6，Solenoid Power Interface
7，Double solenoid valve power connector
8，The camshaft signal sensor
9，Computer control, touch screen
10，The fuel pressure control valve
11，Emergency stop switch
12，Power Indicator
13，Main power switch

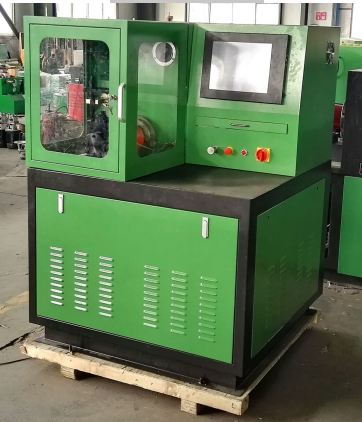

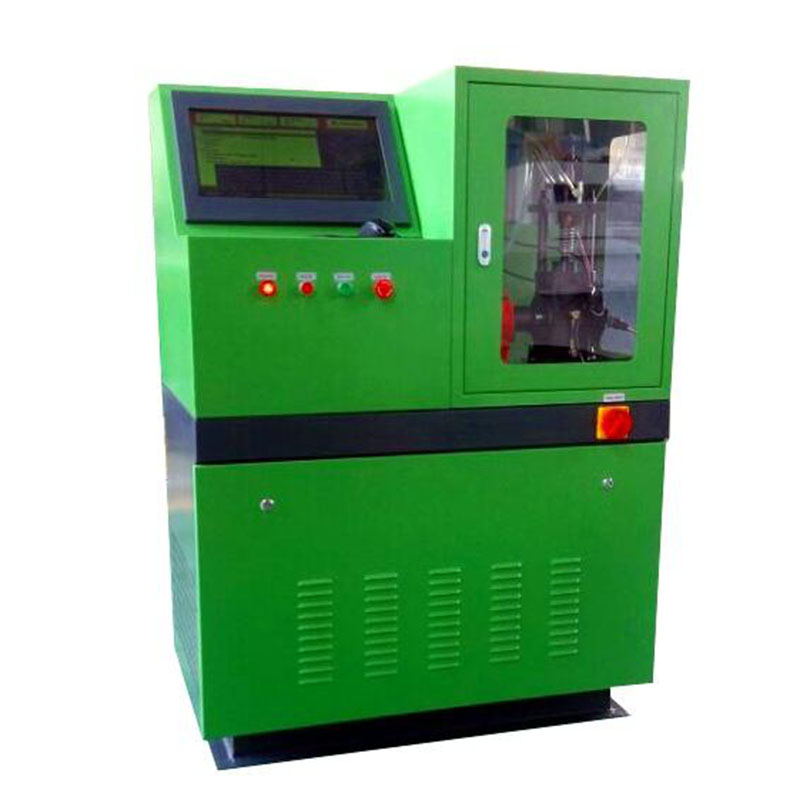

It can test EUI EUP itself. it is the whole set test bench with DIGITAL system.with CAM box and adaptors
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
The EUP/EUI repair tester consists of a mechanical cam box with specified EUP adapter kits and an electronic controller. The cam box will be installed on a standard high pressure pump test bench. The EUP/EUI being tested will be installed in the cam box with the adapter. The electronic controller provides signal to drive the EUP solenoid synchronous with cam shaft rotation. The EUP fuel outlet is connected through high pressure fuel line to an injector. The EUP fuel injection quantities can be checked at given speeds and loads to judge its quality.
